How To Create Autocad Template

Use this process to create a sheet set template based on a canvas set in an existing project. Settings applied here are overridden if you redirect top-level categories on the Project Property dialog box in the project in which the canvas set is located.

Click Options.

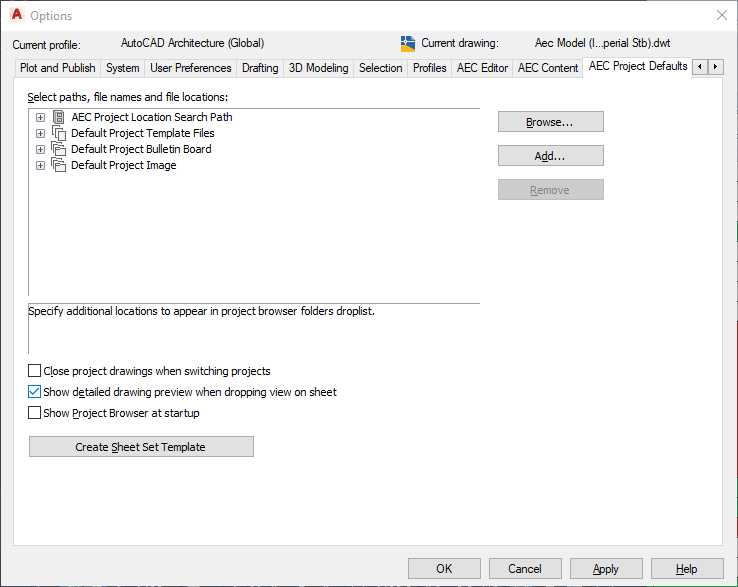

Click the AEC Project Defaults tab, and click Create Sheet Set Template.

The Create Canvas Set wizard is displayed. It volition help y'all create a new sheet set template.

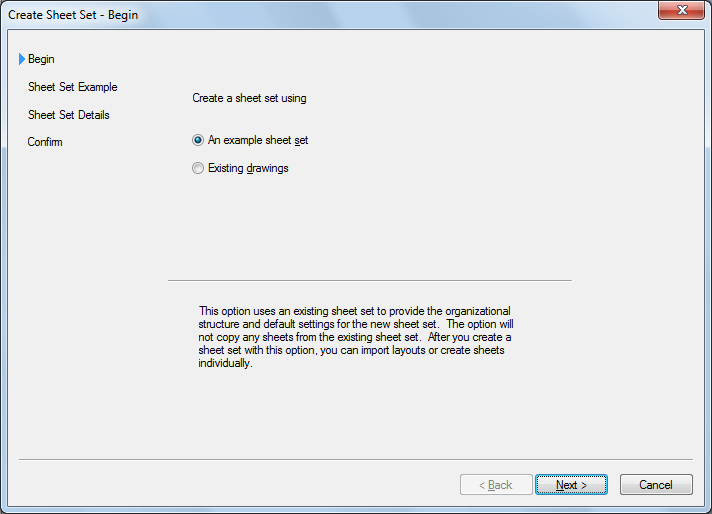

In the Create Sheet Set - Begin dialog box, under Create a sheet set using, select An example sheet fix, and click Side by side.

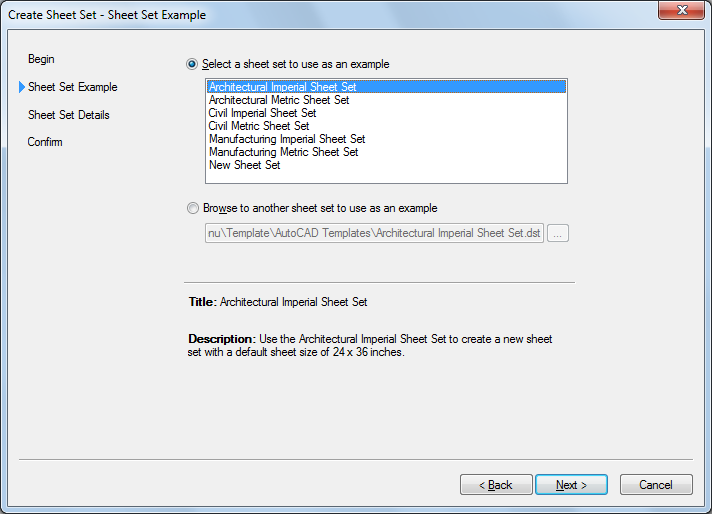

In the Create Sheet Set up - Sheet Set Example dialog box, select a canvas set to utilise equally an instance:

If you want to…	Then…
use a sample sheet ready from the listing	click Select a sheet set to use equally an case, select a canvas set from the listing, and then click Next.
apply a sheet prepare not listed	click Scan to some other sheet ready to utilize as an example, and click . In the Browse for Canvas Set dialog box, select a sheet set up (DST) file, click Open, and so click Side by side.

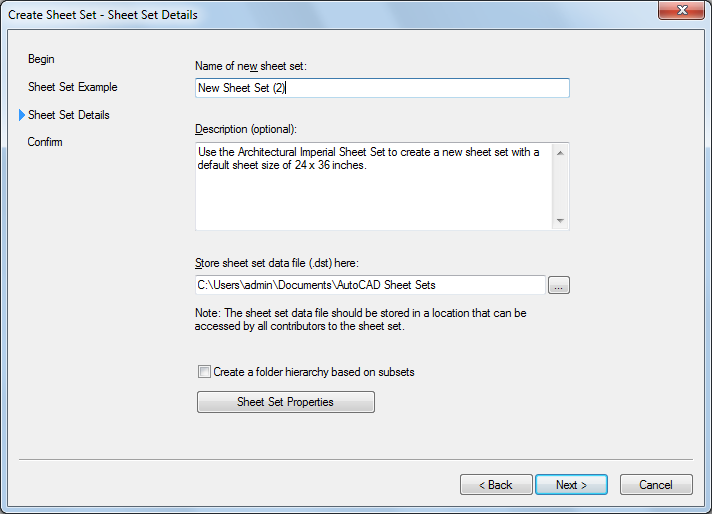

In the Create Sheet Set - Sheet Prepare Details dialog box, enter a proper name for the new sheet fix template.
Enter a description for the new sheet set up template.
Select the folder location in which to salve the new sheet set up template.

Note: The location of a canvass ready template (DST file) does non define the location of projection sail sets created from that template. A project sheet ready is ever stored in the root folder of the associated project.

If y'all are creating a canvass prepare template for an AutoCAD Architecture 2023 toolset project, selecting Create a folder hierarchy based on subsets will have no touch on because sheet subsets in the Drawing Explorer will have corresponding folders associated to them automatically. If you are creating a sheet set template for an AutoCAD canvass set, y'all tin select this option. This will create a new subfolder in the canvass set every time you create a new sheet subset in the Sheet Set up Manager.

To ascertain the properties of the new sheet fix template, click Sheet Set up Properties.

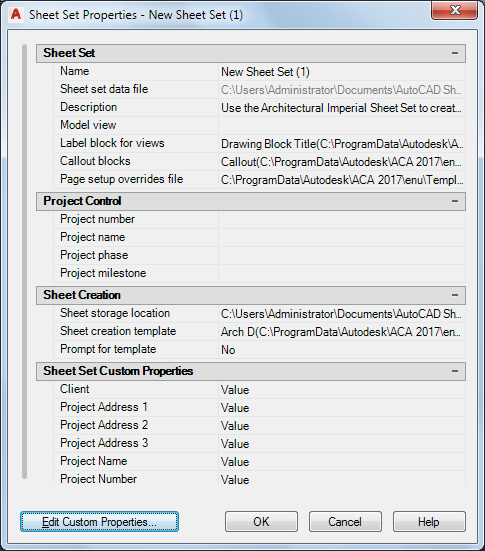

The Sheet Prepare Properties dialog box is displayed.

It is not necessary to complete the following fields when yous use the canvass set template for an AutoCAD Architecture 2023 toolset project:

Field	Reason
Sheet gear up data file	The DST file is always stored in the root folder of the projection.
Model view	Model view drawing locations are not tracked in AutoCAD Compages 2023 toolset canvass sets. They are automatically taken from the projection views. In an AutoCAD canvass prepare, this field displays the paths and names of folders that incorporate drawings used by the sheet set.
Characterization block for views	These are stored in the view templates.
Callout blocks	These are located on the Tools palette.
Name, Number, Phase, Milestone under Project Command	You associate project information with the project file (APJ), instead of the project sheet gear up, when you are working in an AutoCAD Architecture 2023 toolset project. Note: If you lot enter a projection name and project number nether Projection Control in the Sheet Sets Backdrop dialog box that differs from the project proper name and number y'all entered when you lot created the project, yous volition get an mistake message when editing the project, and be prompted to consolidate the data. Therefore, it is strongly recommended to exit the Project Control fields in the sheet set template empty.
Sail storage location	The sheets in a projection are always stored in the Sheets binder of the projection, or in one of its subfolders.

In the Sheet Set Properties dialog box, under Sheet Gear up, click the setting for Folio setup overrides file to define overrides for the project.
In the Select Template dialog box, select a cartoon template (DWT) file, and click Open.
Note: Select a template that contains named paper infinite layouts, and make certain that their plot areas accept been fix to Layout. Otherwise, you cannot use them as folio setup overrides.

None of the other settings under Sail Set are applied when using the sail set template for an AutoCAD Architecture 2023 toolset project.
Under Sheet Creation, yous define settings for the sheets you lot create inside the sheet set.
To define a default layout for new sheets, click the setting for Sheet cosmos template.
In the Select Layout as Canvass Template, click to scan for a cartoon (DWG) or template (DWT) file, and click Open.
In the Select Drawing dialog box, select the default layout to apply to create new sheets, and click OK.

Specify if y'all want to exist prompted for the canvas template each fourth dimension y'all create a new sheet:

If you lot want to…	Then…
exist prompted for a canvass template each time you create a new sheet	select Yes for Prompt for Template.
always use the specified template	select No for Prompt for Template.

To add, edit, or delete custom backdrop, click Edit Custom properties.
For information about Custom Properties, meet "Include Data with Sheets and Sheet Sets" in AutoCAD Help.

Note: When working in an AutoCAD Compages 2023 toolset project, unremarkably you exercise not use custom properties. In well-nigh cases, you use the project details in the Project Browser.
Click OK to shut the Canvass Gear up Backdrop dialog box. Then, click Next.

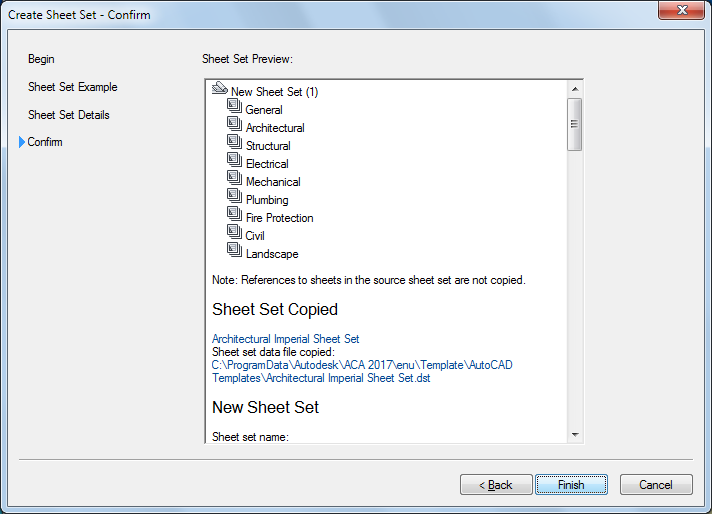

The Create Sheet Set up - Confirm dialog box displays.

Verify that all settings for the new sheet set are right:

If you want to…	And then…
make changes to one or more settings	click Dorsum.
finish creating the sheet set template	click Finish.

Note: You can edit a project sail gear up in the Canvas Set view of the Projection Navigator. You can edit a project canvas set template in the Canvass Gear up Managing director of AutoCAD.
